Introduction

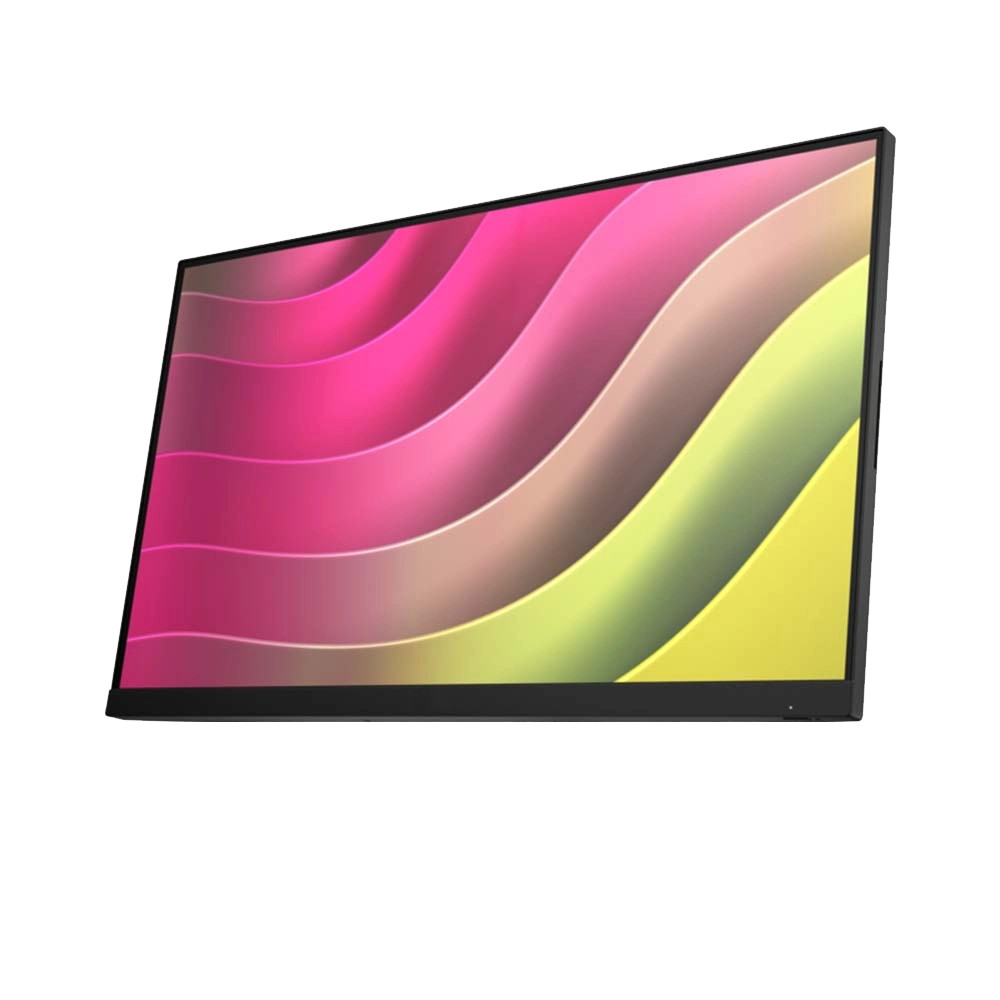

Helps you interact with content on the screen more easily thanks to fast and responsive touch technology combined with anti-glare and fingerprint smudges to help maintain the screen’s sleek, slim profile. Flicker Free technology uses a smooth backlight system to prevent screen flicker. Reduces eye strain and other harmful effects on your eyes, an especially valuable feature needed when working overtime, playing games for long hours or watching movies.
Features
- 6″ Full HD LED with true-flat touchscreen
- 16:9 wide screen aspect ratio, increases viewing area by 40%
- Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS
- Slim design enables easy installation
- Supports various mount options: panel, desktop, and VESA arm
- Touchscreen with reliable glass surface and P-CAP touch control
- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
- Supports various mount options: panel, wall, desktop, rack or VESA arm mounting
Specifications
General
- Enclosure : Front panel: Die-casting aluminium, Rear cover: Die-casting aluminium
- Power Input : Terminal Block: 24 VDC input
- Video Port : HDMI, Display Port
- USB : Rear I/O USB 2 type-A, USB type -B
- Weight (Net): 2kg
LCD Display
- Display Type: Full HD LED
- Display Size: 15.6″
- Resolution: 1920 x 1080
- Color: 16.7M
- Luminance (cd/m2): 300
- Backlight Life (hrs): 30,000
- Contrast Ratio: 1000:1
Touchscreen
- Type: Projected capacitive touch
- Interface: USB
- OS Support: Windows® 7, 8, 10, XPe, CE and Linux
- Hardness: 7H
- Multi Touch: 10 points, USB interface in Win 7/8/10, Linux
Environment
- Operating Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
- Storage Temperature: -30 ~ 70 °C (-22 ~ 158 °F)
- Relative Humidity: Operating, 95% RH @ 40 °C, Non-Condensing, Non-Operating, Operating, 95% RH @ 60 °C, Non-Condensing
- Waterproof: Front Panel IP66 Compliant
- Vibration: 5 ~ 500 Hz, 1 Grms (Operating, Random)
PROTOCOLS
- H.261, H.263, H.264 AVC, H.264 Hight Profile, RTV
- H.323 / SIP
